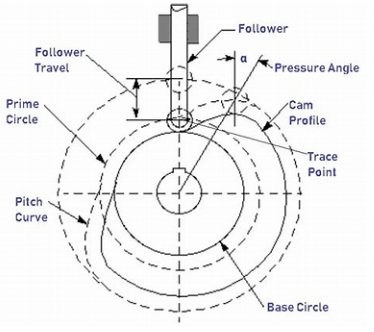

A Cam and Follower Mechanism is a mechanical system used to convert rotary motion into reciprocating or oscillating motion. It consists of two main components:
- Cam – A rotating or sliding piece that has a specially shaped profile designed to move the follower in a specific motion pattern.
- Follower – A component that moves in response to the cam’s motion, translating the cam’s rotary movement into linear or oscillating motion.
Types of Cams
Cams come in various shapes and types, including:
- Disk or Plate Cam – A flat cam with a contoured edge that moves the follower.
- Cylindrical Cam – A rotating cylinder with a groove that controls the follower’s motion.
- Snail Cam – A cam with a gradual rise and sudden drop, commonly used in timing applications.
- Heart Cam – A symmetrical cam used for applications requiring continuous forward and return motion.
Types of Followers
Followers are classified based on their motion and contact type:
- Knife-Edge Follower – A sharp, pointed follower used for precision but prone to wear.
- Roller Follower – A follower with a rolling contact, reducing friction and wear.
- Flat-Faced Follower – A flat surface follower, suitable for high-load applications.
- Mushroom Follower – A variation of the flat-faced follower with a slightly curved surface for smooth motion.
Applications of Cam and Follower Mechanisms
- Automobile Engines – Used in valve timing mechanisms.
- Printing Machines – Converts rotary motion into linear action for precise operations.
- Textile Machines – Controls the movement of thread guides and looms.
- Packaging Machines – Used for automation in sealing, cutting, and folding operations.
