- There is a lot of tools in the construct toolbar, ranging from construction of planes to axis and to points taking into consideration different scenarios
- Let’s look at the most used

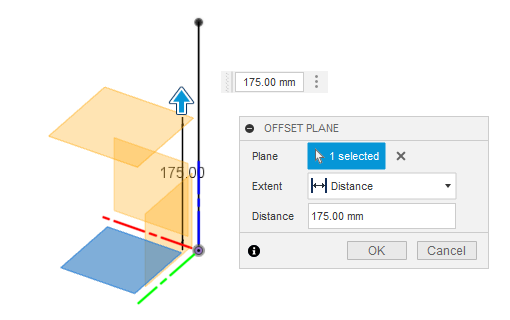

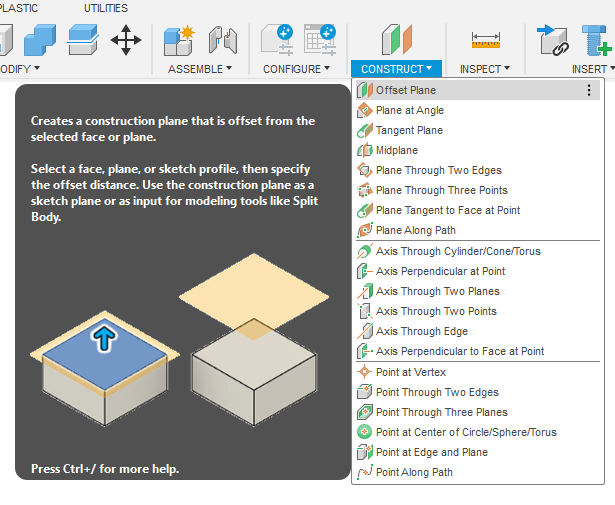

Offset plane
- It is used to construct a plane at an offset from an initial plane or face
- First Select the face or plane and select the distance it needs to be offset and click ok

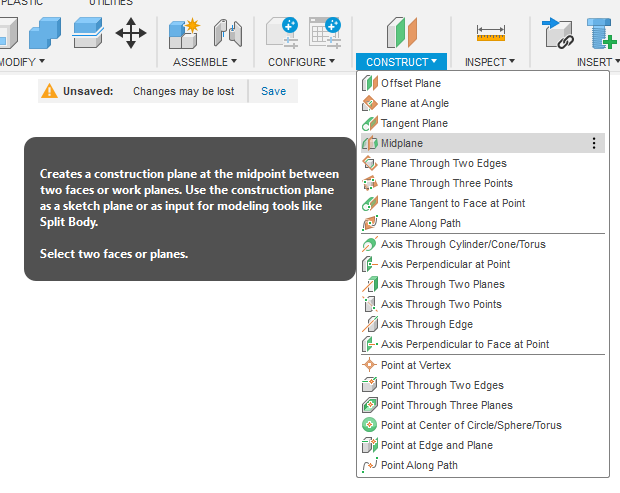

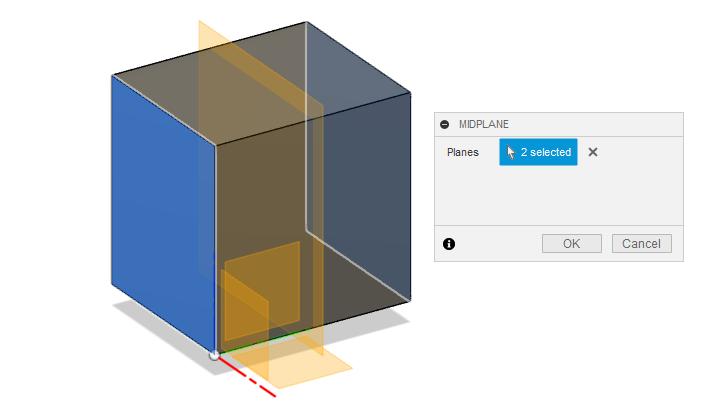

Mid plane
- It is used to construct a plane at the middle of two faces or work planes
- Select the two faces or work planes and then click ok

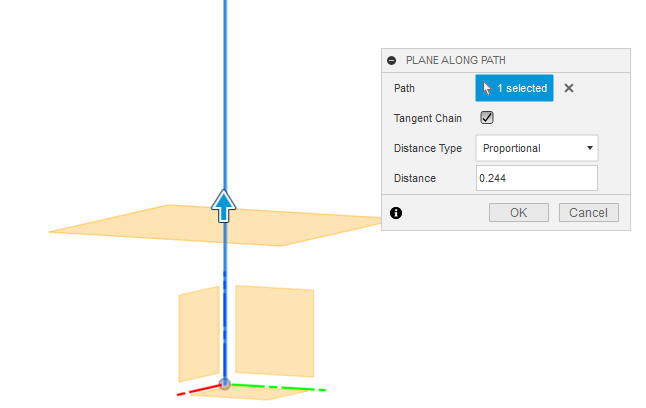

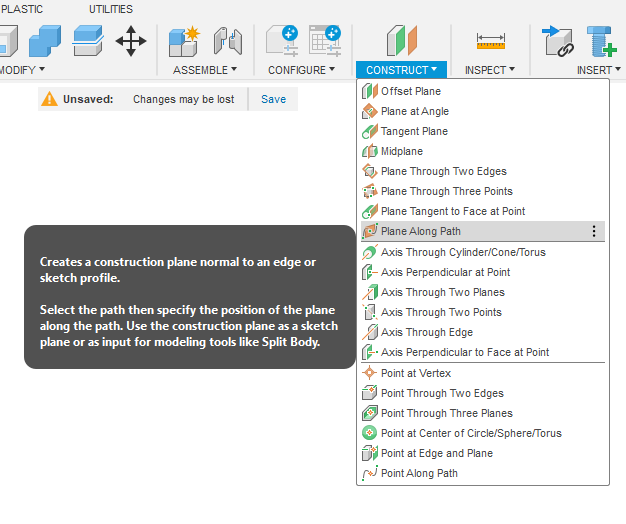

Plane through Path
- It used to construct plane along a selected path
- Select a path along which we need to create the plane and specify distance then click ok
