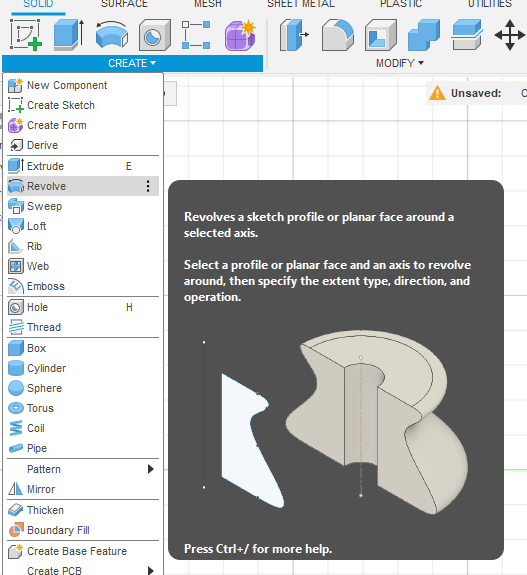

- Select the revolve function
- Select the sketch and axis around which the sketch must revolve
- Then select the angle through which it needs to be revolved and the operation type.
- The different operation types are like that of the extrude function
- After giving the desired input click ok button to obtain the revolve

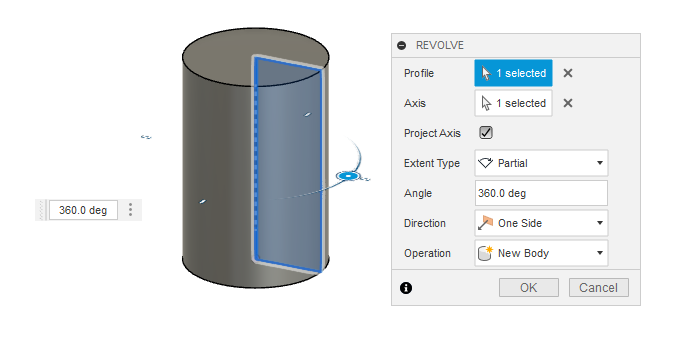

- As an example, we make a cylinder, for that first sketch the profile then Revolve it

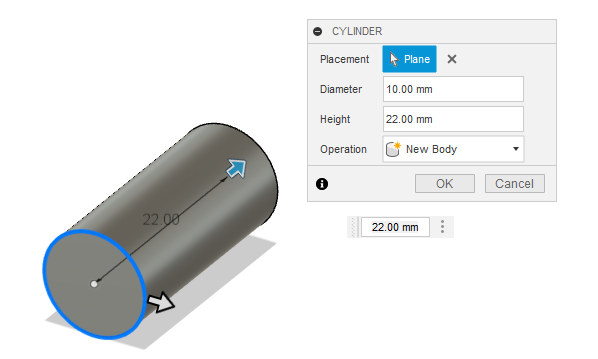

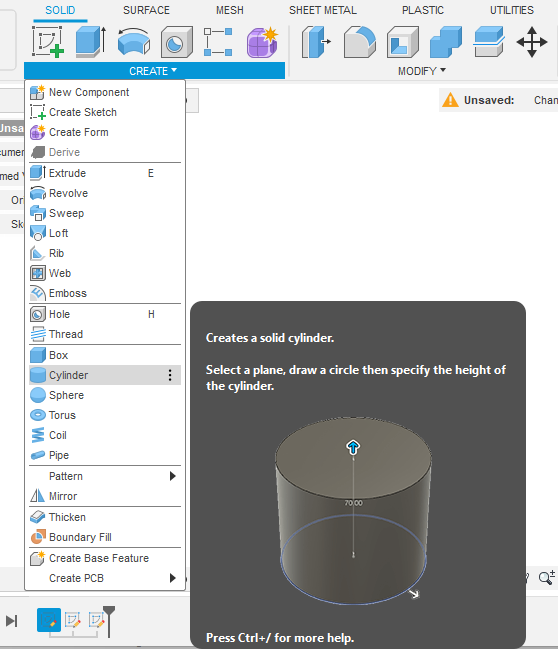

- Another way in which Cylinder can be constructed is by selecting the cylinder option from create

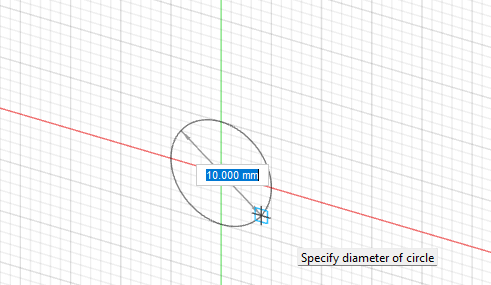

- In this method you must first select a plane where the circular base of the cylinder should lie
