The DRV8833 is a versatile and efficient dual H-bridge motor driver IC developed by Texas Instruments, designed to provide precise control of two DC motors or a single bipolar stepper motor. It is widely used in embedded systems, robotics, and portable devices due to its compact size, low power consumption, and robust protection features.

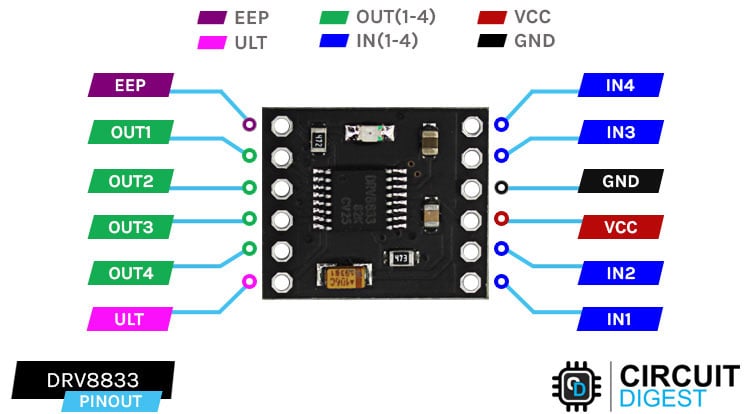

Detailed Overview of DRV8833
Architecture and Functionality
The DRV8833 integrates two independent full H-bridge drivers within a single chip. Each H-bridge consists of four MOSFET switches arranged in an “H” configuration, enabling bidirectional control of a DC motor by switching the polarity of the voltage applied to the motor terminals. This allows the motor to rotate forward or backward.
- Dual H-Bridge: Controls two motors independently or one bipolar stepper motor by energizing coils in sequence.
- Input Control: Each motor channel is controlled by two logic inputs (IN1 and IN2). By setting these inputs high or low, the motor direction and braking mode can be controlled.
- PWM Speed Control: The inputs accept PWM signals, enabling fine-grained speed control by varying the duty cycle of the voltage applied to the motor.
Electrical Characteristics
Operating Voltage Range:
- Motor supply voltage (VM): 2.7 V to 10.8 V
- Logic supply voltage (VCC): 1.8 V to 7 V
This wide voltage range supports a variety of battery chemistries (e.g., Li-ion, NiMH) and motor types.
Current Capability:
- Continuous current: Up to 1.5 A per channel (with adequate heat dissipation)
- Peak current: Up to 2 A per channel (short bursts)
This makes the DRV8833 suitable for small to medium-sized motors commonly used in robotics and portable devices.
Low On-Resistance MOSFETs: The internal MOSFETs have low RDS(on), typically around 0.3 Ω, which reduces conduction losses, improves efficiency, and minimizes heat generation.
Protection Features
The DRV8833 includes several built-in protection mechanisms to ensure safe and reliable operation:
- Overcurrent Protection (OCP): Detects excessive current draw and disables the outputs to prevent damage.
- Thermal Shutdown (TSD): Monitors the chip temperature and shuts down the driver if it overheats, preventing thermal damage.
- Undervoltage Lockout (UVLO): Ensures the driver only operates when the supply voltage is within a safe range, preventing erratic behavior.
- Cross-Conduction Prevention: Incorporates dead-time insertion to prevent both high-side and low-side MOSFETs from conducting simultaneously, avoiding shoot-through current that can damage the device.
Control Modes
- Forward: One input high, the other low, causing current to flow in one direction through the motor.
- Reverse: Inputs reversed, current flows in the opposite direction.
- Brake: Both inputs high or both low (depending on configuration), shorting the motor terminals to quickly stop the motor.
- Coast: Outputs are in a high-impedance state, allowing the motor to spin freely without electrical braking.
Package and Integration
- The DRV8833 is available in compact surface-mount packages such as HTSSOP-16, which facilitates integration into small PCBs and space-constrained designs.
- It requires minimal external components, typically just supply decoupling capacitors and motor connections, simplifying circuit design.
Typical Applications
- Robotics: Driving wheels, arms, or grippers in small robots and robotic kits.
- Drones and UAVs: Controlling gimbal motors or small actuators.
- Portable Electronics: Battery-powered toys, handheld devices, and medical instruments requiring motorized components.
- Camera Systems: Pan-tilt mechanisms and stabilization platforms.
- Automated Systems: Conveyor belts, small pumps, and other electromechanical systems requiring bidirectional motor control.
Advantages of DRV8833
- Compact and Integrated: Combines two H-bridges in a small footprint, reducing board space.
- Energy Efficient: Low RDS(on) MOSFETs minimize power loss and heat generation.
- Robust Protection: Built-in safeguards increase reliability and reduce risk of damage.
- Wide Voltage Range: Supports various battery types and motor voltages.
- Simple Control Interface: Compatible with standard logic levels and PWM signals, making it easy to interface with microcontrollers and development boards.
Summary
The DRV8833 motor driver is a highly capable and efficient solution for controlling two DC motors or one stepper motor in embedded and portable applications. Its dual H-bridge design, wide operating voltage range, and integrated protection features make it ideal for robotics, consumer electronics, and other systems requiring precise, bidirectional motor control. The combination of compact size, low power consumption, and ease of use has made the DRV8833 a popular choice among hobbyists and professionals alike for real-time motor control tasks.
