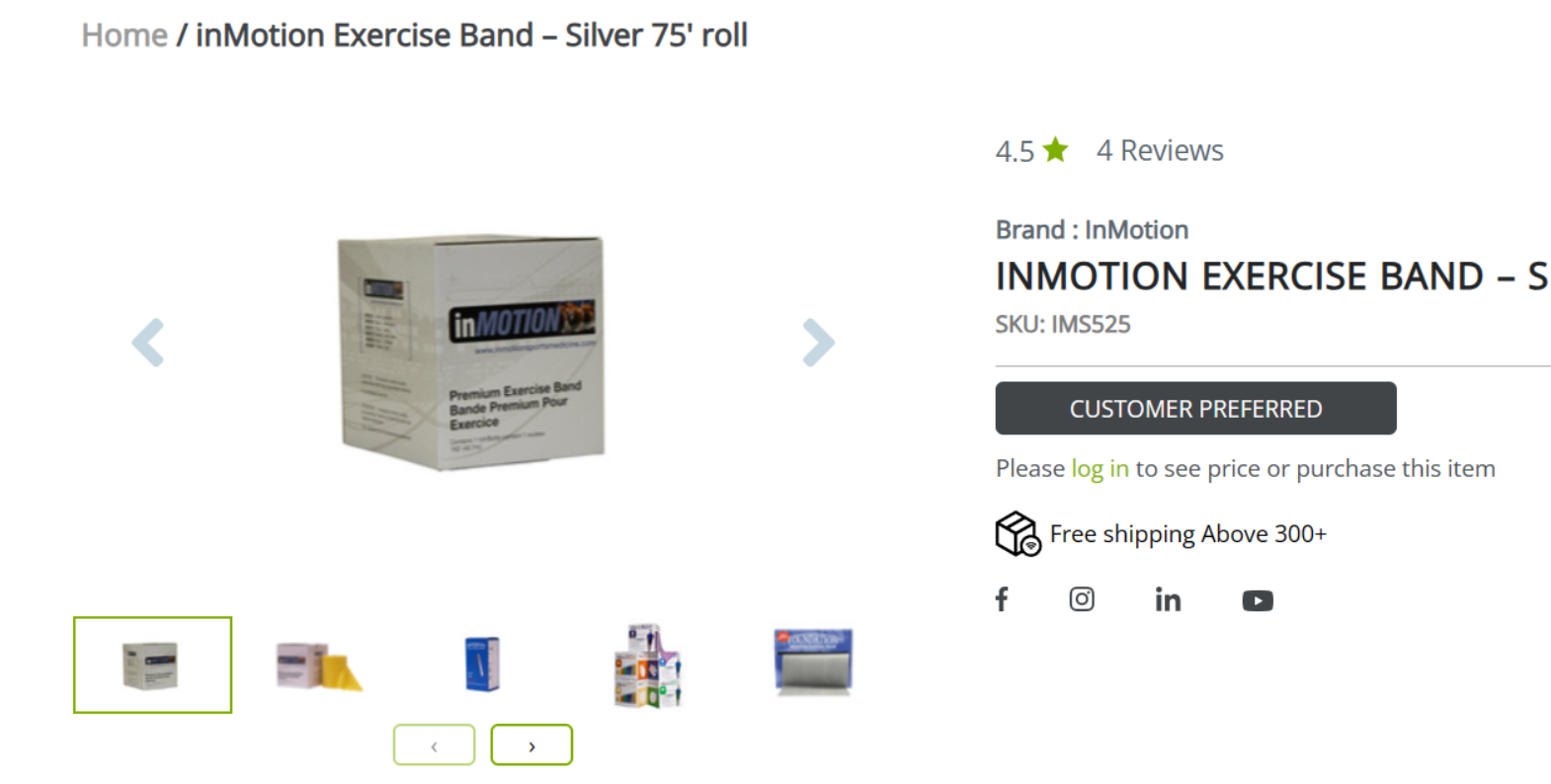

The PDP image gallery section is upgraded by adding the extra features mentioned below.
- The PDP’s main image have arrows to scroll the images.
- The main image is expanded and displayed on the popup when clicking on it.
- The main image shown on the website will be from the item record field “LARGE IMAGE 0”.
- For slider, the images need to be displayed from the fields ALTIMAGE1, ALTIMAGE2, etc.
- We need to be able to add additional images in the slider if needed.
The customization is done by using an extension.
1.Entry pioint file
var pdp = container.getComponent('PDP');
var sliderview
if (pdp) {
pdp.on('afterShowContent', function () {
sliderview = new SliderView(container)
console.log('sliderview--1',sliderview)
_.defer(function () {
jQuery('.product-details-image-gallery').replaceWith(sliderview.render().$el.html());
});
});
};
2.View file
return Backbone.View.extend({
template: jj_slider_slider_tpl,
initialize: function (options) {
this.view = options.getLayout().currentView;
console.log("this.view",this.view)
this.pdp = options.getComponent('PDP');
this.item = this.pdp.getItemInfo();
this.index = 0;
Backbone.Events.off("showSliderModal");
Backbone.Events.on("showSliderModal", this.showSliderModal, this);
Backbone.Events.off("closeModelImage");
Backbone.Events.on("closeModelImage", this.closeModelImage, this);
var self = this;
var itemImageArray = [];
this.fromNav = false;
var showBadge = this.item.item.custitem_special;
var badgeLabel = SC.CONFIGURATION.get('Badge.label');
this.on("afterViewRender", function () {
_.defer(function () {
if (!!showBadge) {
$('.product-details-image-gallery-block').append('<div class="ribbon ribbon-top-left"><span>' + badgeLabel + '</span></div>');
}
})
});
this.images = this.view.model.getImages();
var customFiedlsArray = SC.CONFIGURATION.get('Slidersubtab.items');
var imageIdArray = customFiedlsArray.map(item => item.fieldid);
imageIdArray.forEach(function (imageId) {
var altImage = self.item.item ? self.item.item[imageId] : "";
if (!!altImage) {
itemImageArray.push({ url: altImage, altimagetext: "" });
}
});
if (itemImageArray.length > 0) {
this.images = itemImageArray;
}
var data = self.item.options
var itemoptionid = [];
var option = _.each(_.where(data, {
isMandatory: true
}), function (line) {
itemoptionid.push(line.itemOptionId)
})
//ON LOAD
var imagesizes = _.filter(SC.ENVIRONMENT.siteSettings.imagesizes, function (value) {
return value.name == "tinythumb"
})[0].urlsuffix || ''
if (this.item.item.itemoptions_detail.matrixtype) {
let data = self.pdp.getSelectedMatrixChilds();
let indexes = []
_.each(self.images, function (line, index) {
if (line.url.includes(data[0].internalid)) {
indexes.push(index)
}
})
self.Onload = indexes
}
this.pdp.on('afterOptionSelection', function () {
let data = self.pdp.getSelectedMatrixChilds();
let imglist = []
let trigger = false
_.each(self.images, function (line) {
if (line.url.includes(data[0].internalid) && !trigger) {
imglist.push(line.url + '?' + imagesizes)
trigger = true
}
})
imglist = _.sortBy(imglist)
if (!_.isEmpty(imglist)) {
self.triggerClick(imglist)
}
})
function loadScript(url, callback) {
var script = document.createElement("script")
script.type = "text/javascript";
if (script.readyState) { // only required for IE <9
script.onreadystatechange = function () {
if (script.readyState === "loaded" || script.readyState === "complete") {
script.onreadystatechange = null;
callback();
}
};
} else {
script.onload = function () {
callback();
};
}
script.src = url;
document.getElementsByTagName("head")[0].appendChild(script);
}
loadScript('https://cdnjs.cloudflare.com/ajax/libs/OwlCarousel2/2.3.4/owl.carousel.min.js', function () {
_.defer(function () {
var sync1 = $("#sync1");
var sync2 = $("#sync2");
var sync3 = $("#product-details-custom-slider");
var sync4 = $("#sync4");
var closeModal = $("div#modal-slider-block");
var nomberOfSlides = SC.CONFIGURATION.get('Slidersubtab.noofslide');
var slidesPerPage = nomberOfSlides; //globaly define number of elements in slide
sync1.owlCarousel({
startPosition: self.index,
items: 1,
slideSpeed: 2000,
nav: true,
autoplay: false,
dots: false,
responsiveRefreshRate: 200,
navText: ['<a class="product-details-image-gallery-prev-icon" data-action="prev-image"></a>',
'<a class="product-details-image-gallery-next-icon" data-action="next-image"></a>'
],
}).on('changed.owl.carousel', syncPosition);
sync4.owlCarousel({
startPosition: self.index,
items: 1,
slideSpeed: 2000,
nav: true,
autoplay: false,
dots: false,
responsiveRefreshRate: 200,
navText: ['<a class="product-details-image-gallery-prev-icon" data-action="prev-image"></a>',
'<a class="product-details-image-gallery-next-icon" data-action="next-image"></a>'
],
}).on('changed.owl.carousel', syncPosition);
sync2.on('initialized.owl.carousel', function () {
sync2.find(".owl-item").eq(0).addClass("current");
}).owlCarousel({
startPosition: self.index,
items: slidesPerPage,
dots: false,
nav: true,
smartSpeed: 200,
slideSpeed: 500,
slideBy: slidesPerPage,
responsiveRefreshRate: 100
}).on('changed.owl.carousel', syncPosition2);
function syncPosition(el) {
var current = el.item.index;
sync2.data('owl.carousel').to(current, 100, true);
sync2
.find(".owl-item")
.removeClass("current")
.eq(current)
.addClass("current");
self.fromNav = false
}
if (!_.isEmpty(self.Onload)) {
var load = self.Onload[0]
sync2
.find(".owl-item")
.removeClass("current")
.eq(load)
.addClass("current");
sync1.data('owl.carousel').to(load, 100, true);
self.Onload = []
}
function syncPosition2(el) {
self.fromNav = true
self.number = el.item.index;
$('#sync2 .owl-prev,#sync2 .owl-next').on("click", function (e) {
if (self.fromNav) {
e.preventDefault();
self.fromNav = false
sync2
.find(".owl-item")
.removeClass("current")
.eq(self.number)
.addClass("current");
sync1.data('owl.carousel').to(self.number, 100, true);
sync4.data('owl.carousel').to(self.number, 100, true);
}
})
}
sync2.on("click", ".owl-item", function (e) {
e.preventDefault();
var number1 = $(this).index();
sync1.data('owl.carousel').to(number1, 300, true);
sync4.data('owl.carousel').to(number1, 300, true);
});
sync1.on("click", ".pdp-slider-item", function (e) {
Backbone.Events.trigger("showSliderModal", e);
});
sync3.on("click", ".product-details-image-gallery-detailed-image", function (e) {
Backbone.Events.trigger("showSliderModal", e);
});
closeModal.on("click", ".pdp-image-closeicon", function (e) {
Backbone.Events.trigger("closeModelImage", e);
e.preventDefault();
var number1 = $(this).index();
sync1.data('owl.carousel').to(number1, 300, true);
});
})
})
},
closeModelImage: function(e) {
_.defer(function () {
$('#modal-slider-block').css('display', 'none');
$('.site-search-input-icon').css('display', 'block');
$('.site-search-content::before').css('display', 'block');
})
},
showSliderModal: function (e) {
_.defer(function () {
$('#modal-slider-block').css('display', 'block');
$('.owl-carousel').css('display', 'block');
$('.site-search-input-icon').css('display', 'none');
$('.site-search-content::before').css('display', 'none');
})
},
triggerClick: function triggerClick(imglist) {
var sync1 = $("#sync1");
var sync2 = $("#sync2");
var url = imglist[0]
self = this
_.defer(function () {
var index = jQuery('#sync2 img[src="' + url + '"]').parents('.owl-stage .owl-item').index()
var selectedItem = jQuery('#sync2 .owl-item')[index]
if (!_.isEmpty(sync1.data('owl.carousel'))) {
sync1.data('owl.carousel').to(index, 300, true);
}
sync2.data('owl.carousel').to(index, 100, true)
sync2
.find(".owl-item")
.removeClass("current")
.eq(index)
.addClass("current");
})
},
getContext: function getContext() {
return {
images: this.images,
firstImage: this.images[0] || {},
showImages: this.images.length > 0,
showImageSlider: this.images.length > 1
};
}
});
3.template file
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/OwlCarousel2/2.3.4/assets/owl.carousel.min.css" />
<div class="pdp-image-slider" id="product-details-custom-slider">
{{#if showImages}}
{{#if showImageSlider}}
<div class="owl-carousel owl-theme" id="sync1">
{{#each images}}
<div class="pdp-slider-item">
<div class="product-details-image-gallery-detailed-image">
<div class="image-wrapper">
<a>
<img src="{{resizeImage url 'slider'}}" alt="{{url}}" />
</a>
</div>
</div>
</div>
{{/each}}
</div>
<div class="owl-carousel owl-theme " id="sync2">
{{#each images}}
<a href="{{fullurl}}">
<div class="pdp-slider-item">
<div class="image-wrapper">
<img src="{{resizeImage url 'tinythumb'}}" alt="{{url}}" />
</div>
</div>
</a>
{{/each}}
</div>
{{else}}
{{#with firstImage}}
<div class="product-details-image-gallery-detailed-image">
<img class="center-block" src="{{resizeImage url 'slider'}}" alt="{{altimagetext}}" itemprop="image"
data-loader="false">
</div>
{{/with}}
{{/if}}
{{/if}}
</div>
<!-- modal data -->
<div id="modal-slider-block" class="pdp-image-modal" style="display: none;">
<div class="pdp-image-slider" id="product-details-custom-slider">
<a style="cursor: default;" data-action="image-close">
<span class="pdp-image-closeicon" id="closeimage">×</span>
</a>
{{#if showImages}}
{{#if showImageSlider}}
<div class="owl-carousel owl-theme" id="sync4">
{{#each images}}
<div class="pdp-slider-item">
<div class="modal-product-details-image-gallery-detailed-image">
<div class="image-wrapper">
<a>
<img src="{{resizeImage url 'main'}}" alt="{{url}}" />
</a>
</div>
</div>
</div>
{{/each}}
</div>
{{else}}
{{#with firstImage}}
<div class="modal-product-details-image-gallery-detailed-image">
<img class="center-block" src="{{resizeImage url 'main'}}" alt="{{altimagetext}}" itemprop="image"
data-loader="false">
</div>
{{/with}}
{{/if}}
{{/if}}
</div>
</div>

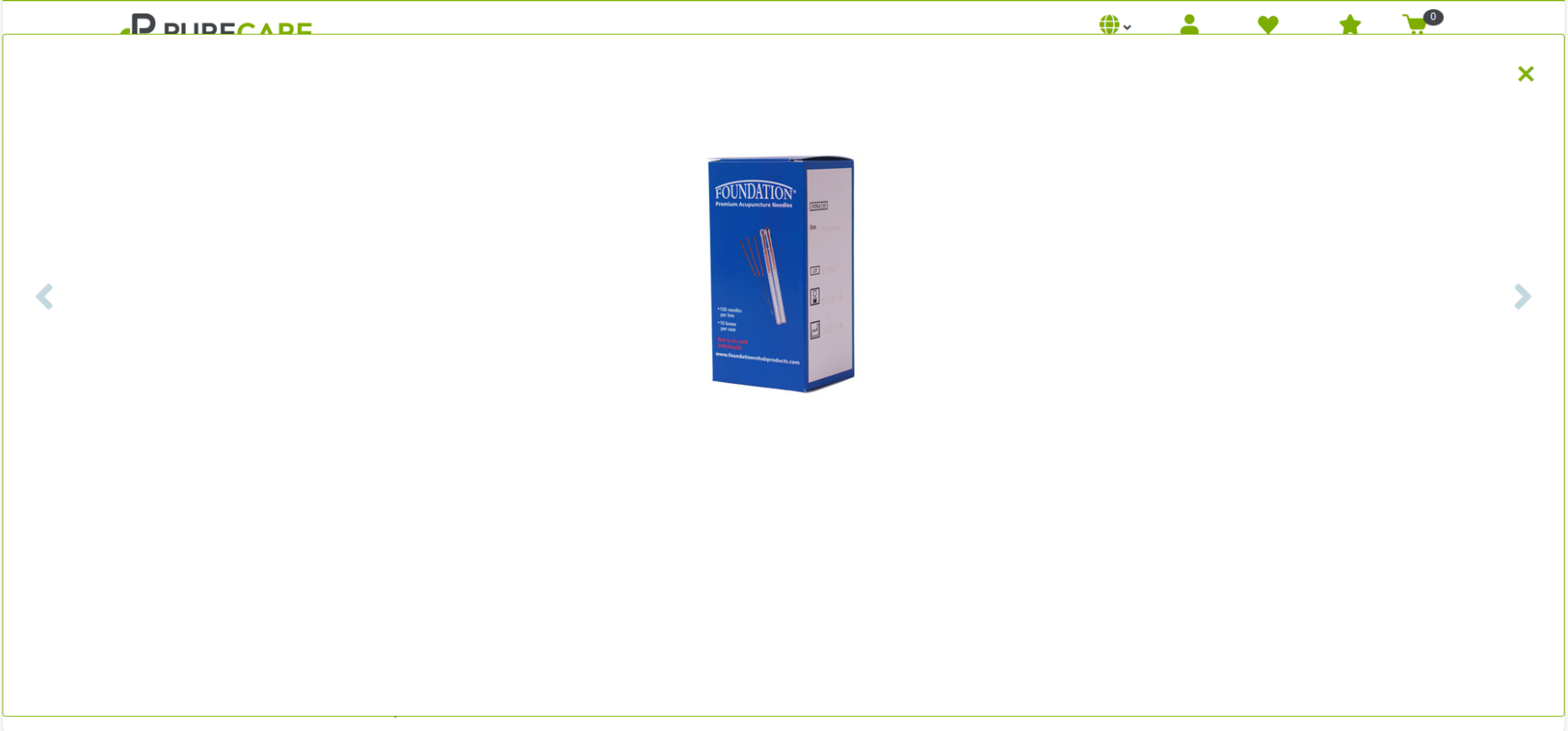

Modal view
