A simple organization structure tree view based on Vue3.x. It supports events, slots, horizontal vision and nodes manipulation

Usage

<template>
    <h1>Basic</h1>
    <div>
        <blocks-tree :data="treeData" :horizontal="treeOrientation=='1'" :collapsable="true"></blocks-tree>
    </div>

    <h1>With slots</h1>
    <div>
        <blocks-tree :data="treeData" :horizontal="treeOrientation=='1'" :collapsable="true">
        <template #node="{data,context}">
            <span>
                <input type="checkbox" :checked="selected.indexOf(data.some_id)> -1" @change="(e)=>toggleSelect(data,e.target.checked)"/> {{data.label}}
            </span>
            <br/>
            <span v-if="data.children && data.children.length">
                <a href="#" @click="context.toggleExpand">toggle expand</a>
            </span>
        </template>
        </blocks-tree>
        <div>
        Selected: {{selected}}
        </div>
    </div>

    <h1>Change orientation</h1>
    <select v-model="treeOrientation">
        <option value="0">Vertical</option>
        <option value="1">Horizontal</option>
    </select>

</template>
<script>
import { defineComponent,ref,reactive } from 'vue';

export default defineComponent({

    setup() {

        let selected = ref([]);
        let treeOrientation = ref("0");
        let treeData = reactive({
            label: 'root',
            expand: true,
            some_id: 1,
            children: [
                { label: 'child 1', some_id: 2, },
                { label: 'child 2', some_id: 3, },
                {
                    label: 'subparent 1',
                    some_id: 4,
                    expand: false,
                    children: [
                        { label: 'subchild 1', some_id: 5 },
                        {
                            label: 'subchild 2',
                            some_id: 6,
                            expand: false,
                            children: [
                                { label: 'subchild 11', some_id: 7 },
                                { label: 'subchild 22', some_id: 8 },
                            ]
                        },
                    ]
                },
            ]
        });

        const toggleSelect = (node, isSelected) => {
            isSelected ? selected.value.push(node.some_id) : selected.value.splice(selected.value.indexOf(node.some_id), 1);
            if(node.children && node.children.length) {
                node.children.forEach(ch=>{
                    toggleSelect(ch,isSelected)
                })
            }
        }

        return {
            treeData,
            selected,
            toggleSelect,
            treeOrientation
        }
    }
})

</script>

NPM

# use npm
npm i vue3-blocks-tree

# use yarn
yarn add vue3-blocks-tree

Import Plugins

import {createApp} from 'vue';
import VueBlocksTree from 'vue3-blocks-tree';
import 'vue3-blocks-tree/dist/vue3-blocks-tree.css';
// or import 'vue3-blocks-tree/src/styles/blocks-tree.less';
createApp(App).component('blocks-tree',VueBlocksTree)

// ...

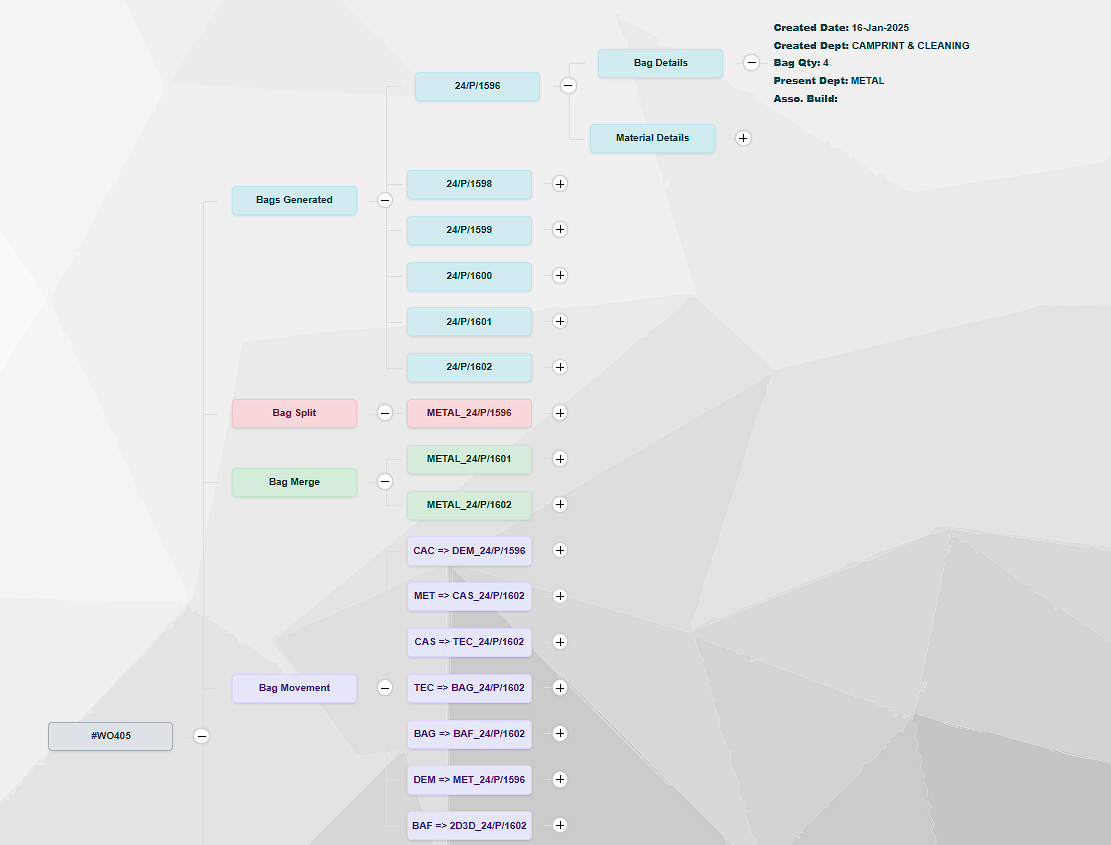

Demo
